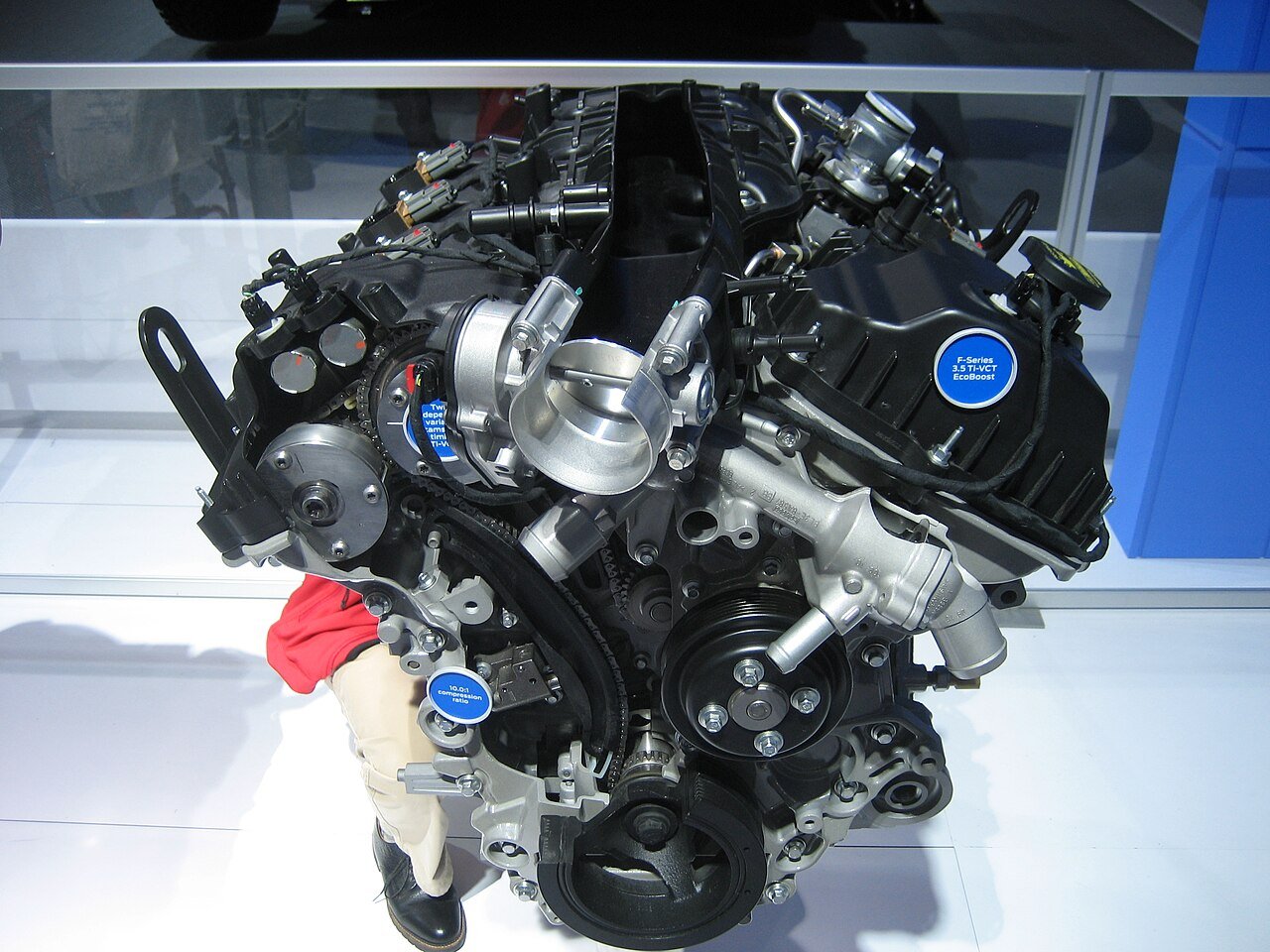

This is a Ford 3.5 EcoBoost engine for sale in fairly used condition: a complete 3.5 litre twin-turbo V6, pulled from a donor vehicle, inspected, compression-tested and ready to ship worldwide. We supply both truck engines for the F-150, Expedition, Navigator and Transit, and transverse engines for the Explorer, Flex, Taurus SHO and Lincoln crossovers.
We confirm the generation and layout from your VIN and send photos of the actual engine before you pay.
What’s Included With This Ford 3.5 EcoBoost Engine for Sale
- Aluminium block with crank, rods and pistons
- Both DOHC cylinder heads with cams and valvetrain
- Timing chains, guides and cam phasers
- Both turbochargers, where fitted (condition noted on your quote)
- Intake manifold, throttle body, direct injectors and high-pressure fuel pump
- Coil packs, oil pan and valve covers
- Compression results, photos and crating on a pallet
The transmission, PCM and harness aren’t included unless agreed in writing.
3.5 EcoBoost Specifications
| Engine | Ford 3.5L EcoBoost V6 |
| Layout | 60-degree V6, twin-turbo, DOHC, 24 valves |
| Displacement | 3,496 cc (213 cu in) |
| Bore x stroke | 92.5 mm x 86.7 mm |
| Compression | 10.0:1 (Gen 1), 10.5:1 (Gen 2) |
| Fuel system | Direct injection (Gen 1), port plus direct (Gen 2) |
| F-150 output | 365 hp / 420 lb-ft up to 400 hp / 500 lb-ft |
| Raptor and Navigator | 450 hp / 510 lb-ft |
| Oil capacity | About 6 quarts |
See the Ford EcoBoost engine article on Wikipedia for the history of the range.
Truck or Car: Get the Right One
In the F-150, Expedition, Navigator and Transit, the engine sits lengthways. In the Explorer, Flex, Taurus and Lincoln crossovers it sits sideways. The oil pan, turbos, manifolds, accessory drive, water pump setup and mounts are all different, so an Explorer engine will not fit an F-150. Gen 1 (2010 to 2016) and Gen 2 (2017 on) engines aren’t interchangeable either. Send your VIN and we’ll quote the right Ford 3.5 EcoBoost engine for sale for your vehicle. The F-150 PowerBoost hybrid uses its own version, so mention it if that’s what you drive.
Condition and Testing
Every Ford 3.5 EcoBoost engine for sale on this page is fairly used and tested. Before listing, we:
- Compression test all six cylinders and leak-down any low readings
- Check both turbos for shaft play and oil in the intake tract
- Check the timing chain for slack
- Inspect the oil for metal, coolant or fuel dilution
- Turn the crank by hand to feel for binding
You get the results and photos of the exact engine with your quote.
Do You Need a Replacement Engine?
A stretched timing chain, a leaking turbo line or a bad coil isn’t a reason to replace the engine. A rod knock, a spun bearing, low compression from damaged rings, coolant in the oil from a failed internal water pump on a transverse engine, or turbo debris sent into the cylinders usually is. In those cases a tested Ford 3.5 EcoBoost engine for sale costs less than a rebuild and gets you moving sooner. Our replacement engine cost guide helps you compare.
Why Buy This Ford 3.5 EcoBoost Engine for Sale
- Tested with real numbers for every cylinder
- Layout and generation confirmed by VIN before you pay
- Photos of the actual engine
- Much cheaper than a remanufactured unit
- Written warranty
- Worldwide shipping with tracking
Install Advice
- Clean or replace the intercooler and its pipes, especially after a turbo failure
- Fit new turbo oil and coolant line seals
- Prime the oil system before the first start
- Fit new spark plugs gapped to spec
- Fill and bleed the cooling system properly
Skip the intercooler clean-out and debris from the old engine can damage your new Ford 3.5 EcoBoost engine for sale within minutes, so don’t skip it.
Common 3.5 EcoBoost Issues We Check For
Gen 1 engines are known for timing chain stretch, especially when oil changes were stretched too. You’ll hear a rattle on a cold start and see cam timing codes. Gen 1 engines also only have direct injection, so carbon builds up on the intake valves over time and can cause rough running. Gen 2 engines added port injection, which largely fixes the carbon issue, though some 2017 to 2020 engines rattle briefly on start-up from the cam phasers, and Ford released updated parts for that.
Turbos wear with mileage, wastegates can rattle, and turbo coolant and oil lines can leak. On transverse engines in the Explorer, Flex and Taurus, the water pump sits inside the engine and is driven by the timing chain. When it fails, coolant can get into the oil. That’s one of the most common reasons a car-based engine needs replacing, and it’s why we look closely at the oil on every Ford 3.5 EcoBoost engine for sale we test.
Used vs Remanufactured
A remanufactured 3.5 EcoBoost is often sold without turbos, injectors or the high-pressure fuel pump, and those parts aren’t cheap. A fairly used Ford 3.5 EcoBoost engine for sale usually comes as a more complete unit, has already proven itself in a vehicle, and costs much less overall. For most F-150 and Expedition owners, it’s the better value.
Towing
The 3.5 EcoBoost is a strong tow engine, with its torque arriving low in the rev range. Keep the oil fresh, the cooling system healthy and the spark plugs in good shape, and let it idle briefly after a hard pull so the turbos cool down. Do that and this Ford 3.5 EcoBoost engine for sale will tow like it did when it was new.
Shipping Worldwide
We ship to buyers across the Americas, the Caribbean, Europe, Africa, the Middle East, Asia and Oceania. The engine is drained, sealed, bolted to a pallet and wrapped, with the turbo openings sealed. Freight is quoted by weight and destination, and we handle export paperwork. See our shipping policy.
Payment and Ordering
We accept bank transfer only.
- Add this Ford 3.5 EcoBoost engine for sale to your cart, or send us your VIN.
- We confirm the right version and send photos, test results and a written quote with freight.
- You pay by bank transfer.
- We crate and ship the engine and send tracking.
Read our refund and returns policy before ordering.
More Reading
Our Ford 3.5 EcoBoost buyer’s guide covers generations, problems and buying checks in detail. F-150 owners may also want the 5.0 Coyote engine or our article on common F-150 engine problems. Browse all Ford engines or the full shop.
Questions
Is this engine new?
No. It’s fairly used and tested.
Will an Explorer engine fit my F-150?
No. The Explorer engine is transverse and the F-150 engine is longitudinal.
Are the turbos included?
On complete engines, usually yes. The quote lists exactly what’s included.
How do I order?
Add this Ford 3.5 EcoBoost engine for sale to your cart, or send your VIN through our contact page. You can also call +1 (209) 733-0882 or WhatsApp +1 209 690 5983. We confirm the fit before you pay.
